Description:

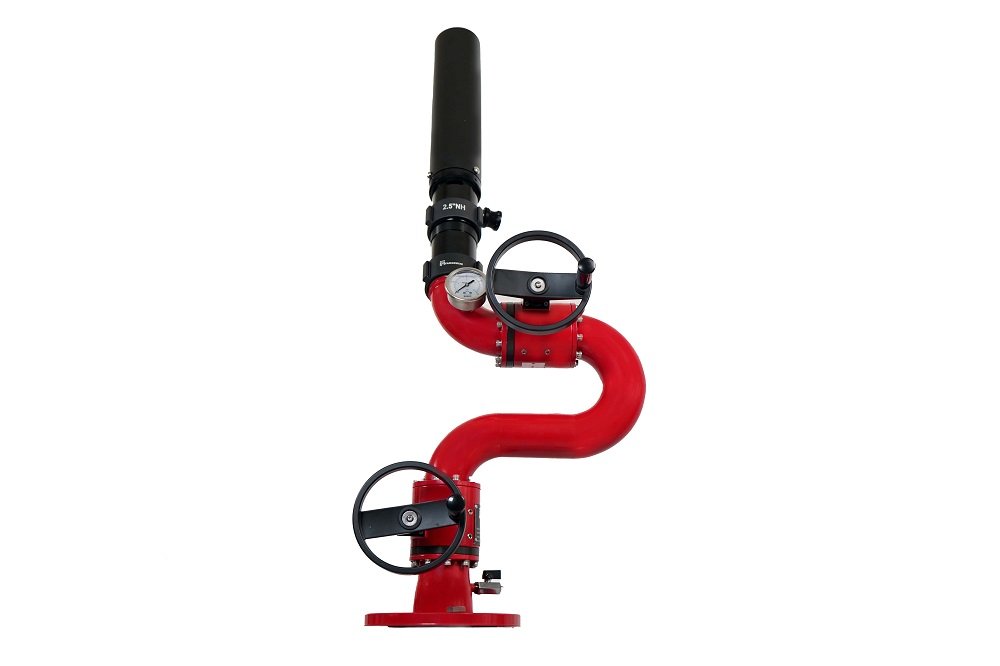

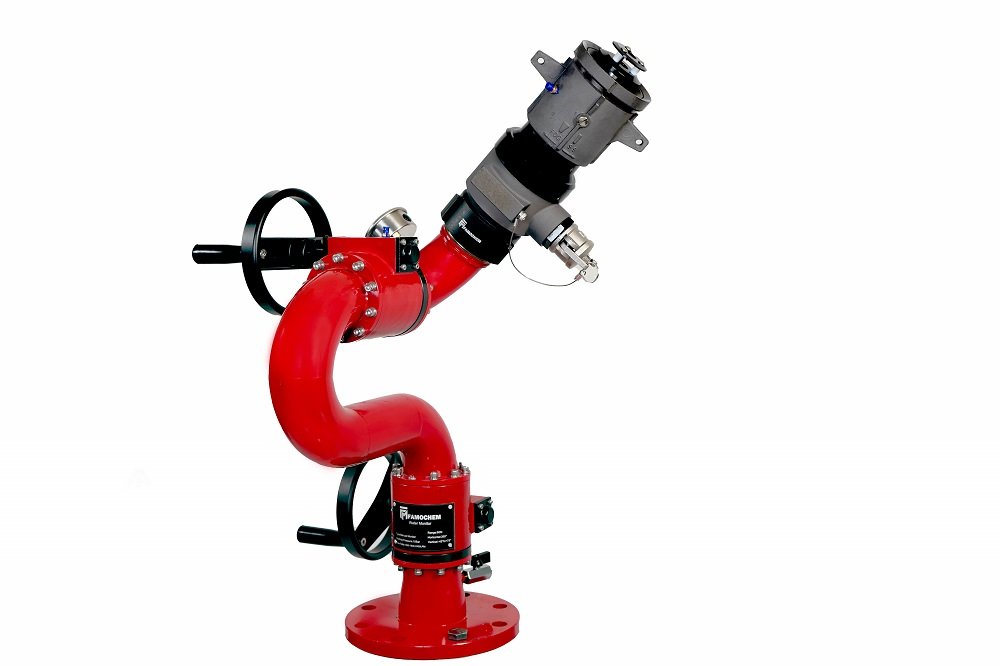

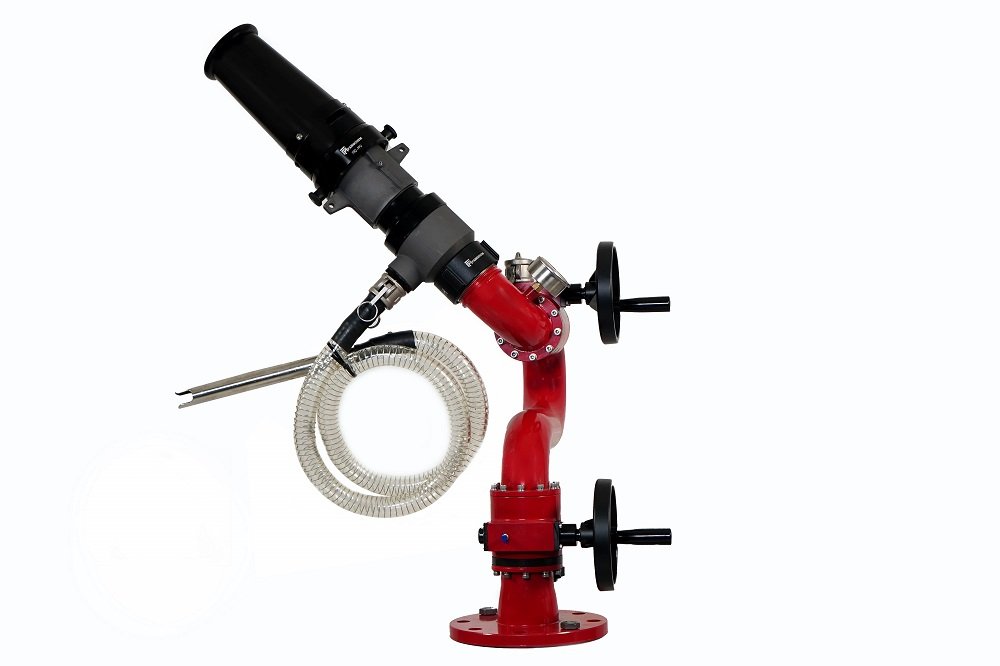

FMGS2400 series are heavy duty fixed monitors suitable for Oil and Gas industries, equipped with embedded maintenance free gears.
Model: FAMOCHEM-FMGS2400
Body Material: Stainless Steel 304
Hand Wheel Material: Hard Anodized Aluminum
Movement: Double worm Gear
Nozzle Type: Selectable Flow
Nozzle Connection Size: 2.5” NH
Flow Rate: 1200/1800/2400lpm @ 8Bar
Max Through Length @ 8Bar: 65meter
Range of Motion: -60o to + 90o Vertically, 360o Horizontally
Inlet Connection: 3”/4” ANSI or DIN (other standards are available based on the request)
Other Applicable Nozzles:
FAMOCHEM-LESI2400 – SI – 1400 – 2000 – 2400 – 2800
FAMOCHEM-MNSF2400SI – 1800 – 1200 / Normal
FAMOCHEM-ATM3000
FAMOCHEM-BM2400SI – 2000 – 2800 / Normal
